Ethernet over twisted pair converter

Model:STHA-IP-TP

IP Network over 2-Wire Twisted Pair Converter

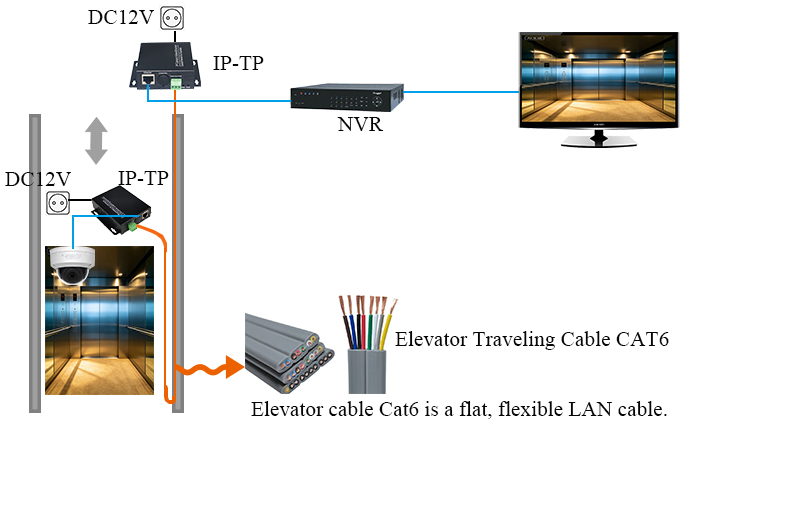

For IP camera system & elevator security system

Analog camera system upgraded to IP camera system

DC12V

Select the number of specifications

Please check the product information you want!

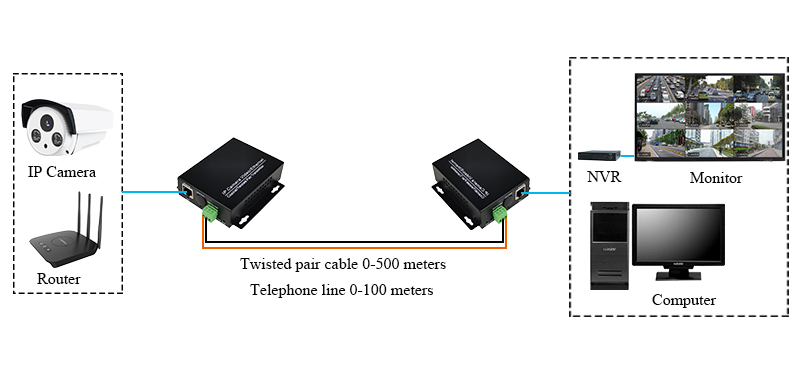

Product Description Data sheet Topology

STHA-IP-TP turns any analogue video cable into a high-speed network connection. This allows the replacement of analogue cameras with IP cameras without installation of any new cabling, which can save some 30-40% of the system cost.STHA-IP-TP network extender uses two cables such as coaxial cable, telephone line and twisted pair to extend the transmission of Such as coaxial cable, telephone line and twisted pair, extending the transmission of high-definition network video and high-speed data signals to a distance of 1KM；And multi-channel IP video can be transmitted simultaneously through one cable. It can solve the problem that the IP camera has a short transmission distance, and the installation is simple, labor-saving and labor-saving, and the optical fiber is no longer needed.

Application range

Used to modify existing analog video sites, analog video surveillance upgrade network IP video surveillance; elevator video surveillance; network IP video remote expansion.

Product Name	IP Network Ethernet to 2-Wire Twisted Pair Converter
Model	STHA-IP-TP
Chipset used	QCA6410
Flash	8Mbit
Transmission Frequency	2M-30M
Interface	BNC interface1, RJ45 interface1
Transmission Rate	maximum 100Mbps
Maximum Transmission Range	2KM
Cable Requirement	Coaxial cable RG59 RG6 cable
Self-network Quantity	2-24 sets (a cable can be connected to 24 sets)
product features	IEEE 1 based P1901 technology supports multimedia services
The measured TCP/IP throughput data is as	Transmission distance: RG59 cable can transmit up to 2000 meters, and keep the TCP/IP transmission rate not lower than 30Mbps. The measured TCP/IP throughput data is as follows: A) RG59 cable length is less than 400 meters, the throughput data is 92Mbps B) RG59 cable length is less than 1000 meters, the throughput data is 74Mbps C) RG59 cable length is less than 2000 meters, the throughput data is 30Mbps
General Indicators
Power Supply	DC12V1A (Can share a power supply with a network IP camera)
Power consumption	3W
Operating Temperature	Minus 20 degrees Celsius to 40 degrees Celsius above zero
Relative Humidity	5%-95% Non-condensing

No comment

Product Description

Application range

Used to modify existing analog video sites, analog video surveillance upgrade network IP video surveillance; elevator video surveillance; network IP video remote expansion.

Data sheet

Product Name	IP Network Ethernet to 2-Wire Twisted Pair Converter
Model	STHA-IP-TP
Chipset used	QCA6410
Flash	8Mbit
Transmission Frequency	2M-30M
Interface	BNC interface1, RJ45 interface1
Transmission Rate	maximum 100Mbps
Maximum Transmission Range	2KM
Cable Requirement	Coaxial cable RG59 RG6 cable
Self-network Quantity	2-24 sets (a cable can be connected to 24 sets)
product features	IEEE 1 based P1901 technology supports multimedia services
The measured TCP/IP throughput data is as	Transmission distance: RG59 cable can transmit up to 2000 meters, and keep the TCP/IP transmission rate not lower than 30Mbps. The measured TCP/IP throughput data is as follows: A) RG59 cable length is less than 400 meters, the throughput data is 92Mbps B) RG59 cable length is less than 1000 meters, the throughput data is 74Mbps C) RG59 cable length is less than 2000 meters, the throughput data is 30Mbps
General Indicators
Power Supply	DC12V1A (Can share a power supply with a network IP camera)
Power consumption	3W
Operating Temperature	Minus 20 degrees Celsius to 40 degrees Celsius above zero
Relative Humidity	5%-95% Non-condensing
